Epropulsion Electric Engine

Overview

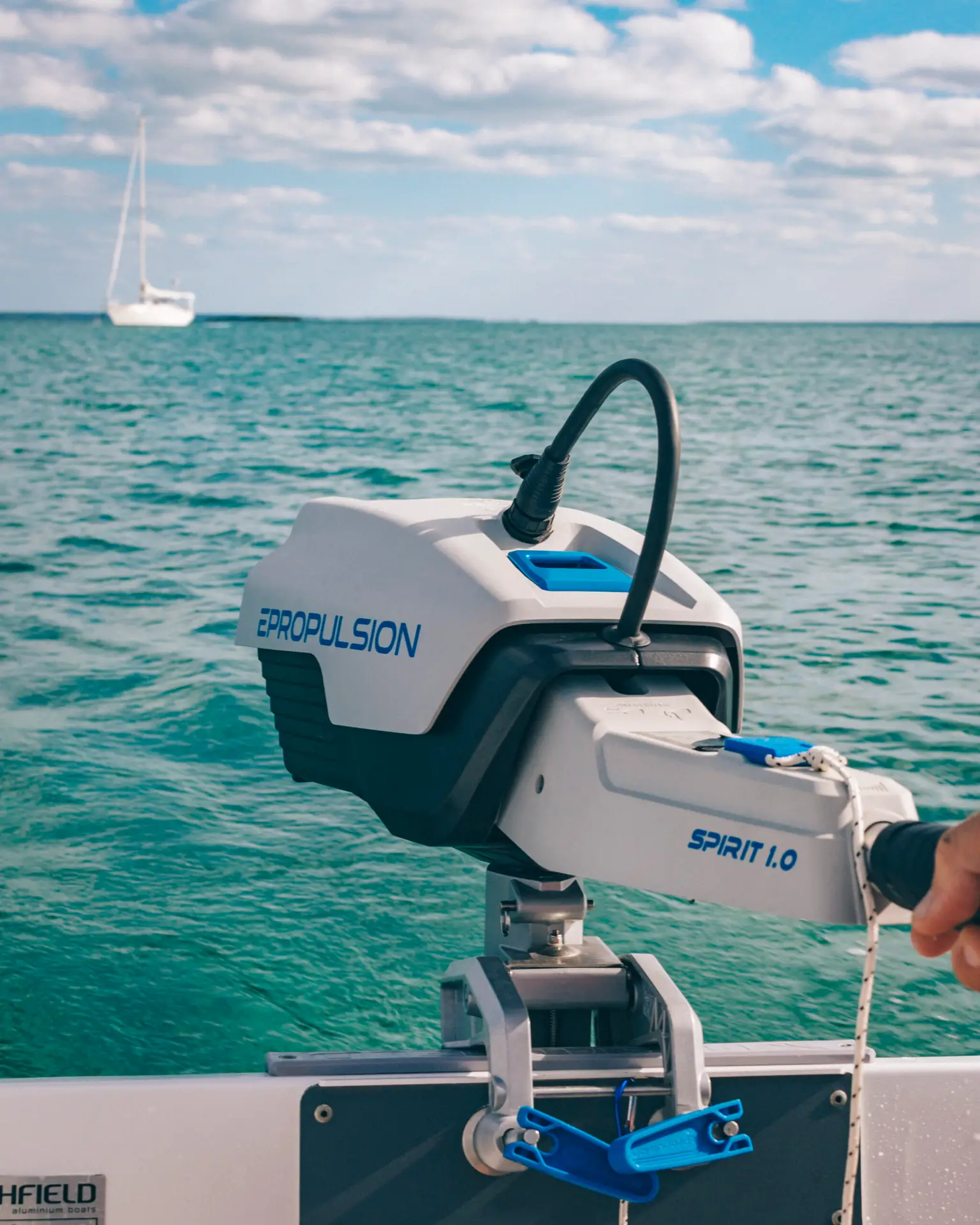

The ePropulsion Spirit 1.0 Plus is a portable 3HP equivalent electric outboard designed to suit smaller inflatable boats. It’s lightweight, delivers clean power, and uses a large 1276Wh integrated lithium battery to give you a long time on the water. Carry bags are not included.

Performance

• 1kW BLDC motor (3HP equivalent)
• Up to 22 miles per charge at 4-5mph
• Trolling speed 2.7mph lasts up to 19 hours
• Trolling speed 3.5mph lasts up to 10 hours
• Trolling speed 4.4mph lasts up to 5 hours

Battery and Portability

• Integrated rechargeable battery weighs 8.7kg / 19lbs

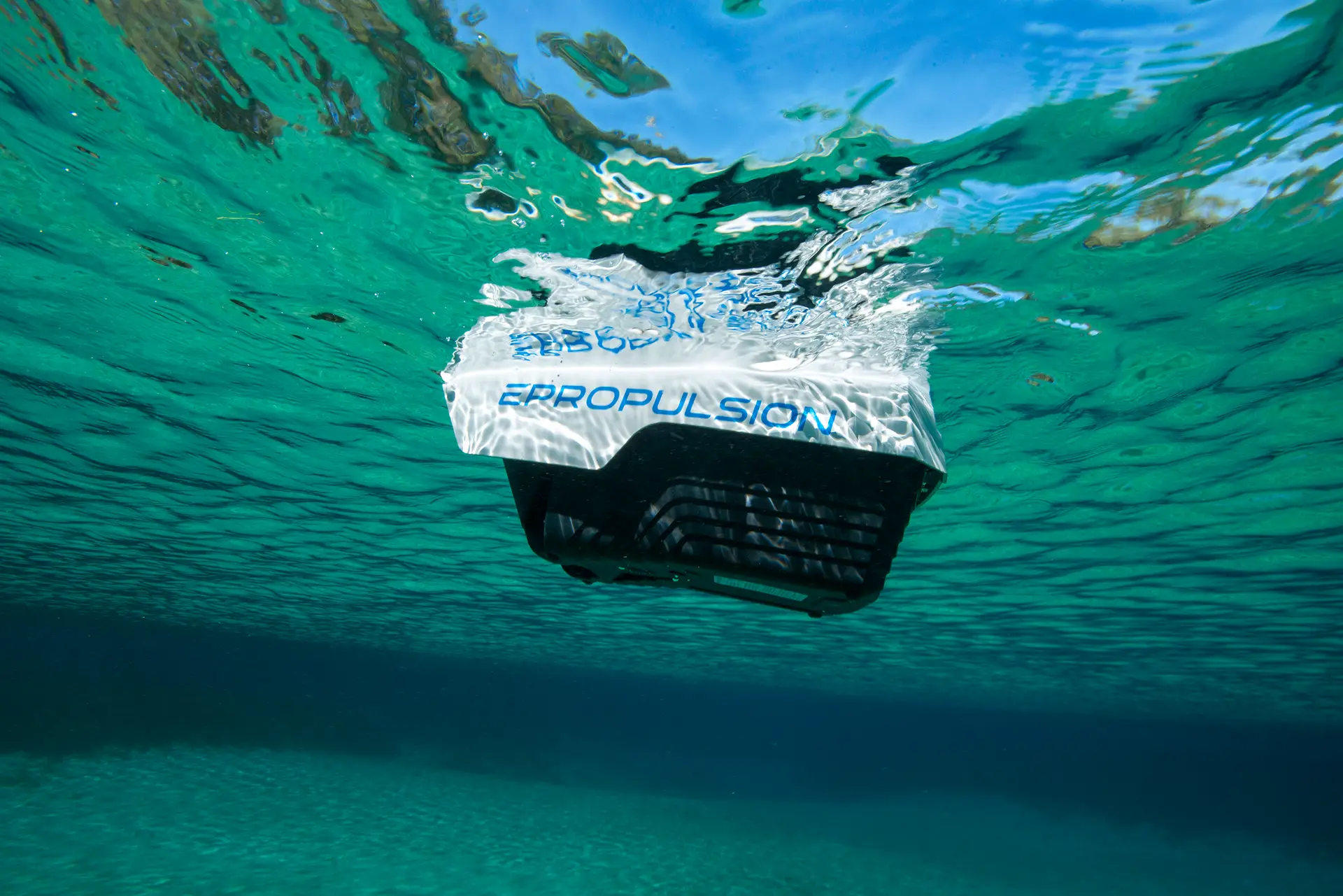

• If the battery drops in the water it floats
• Full engine weight is 19kg / 42lbs
• 1276Wh capacity with dual power ports allowing solar charging

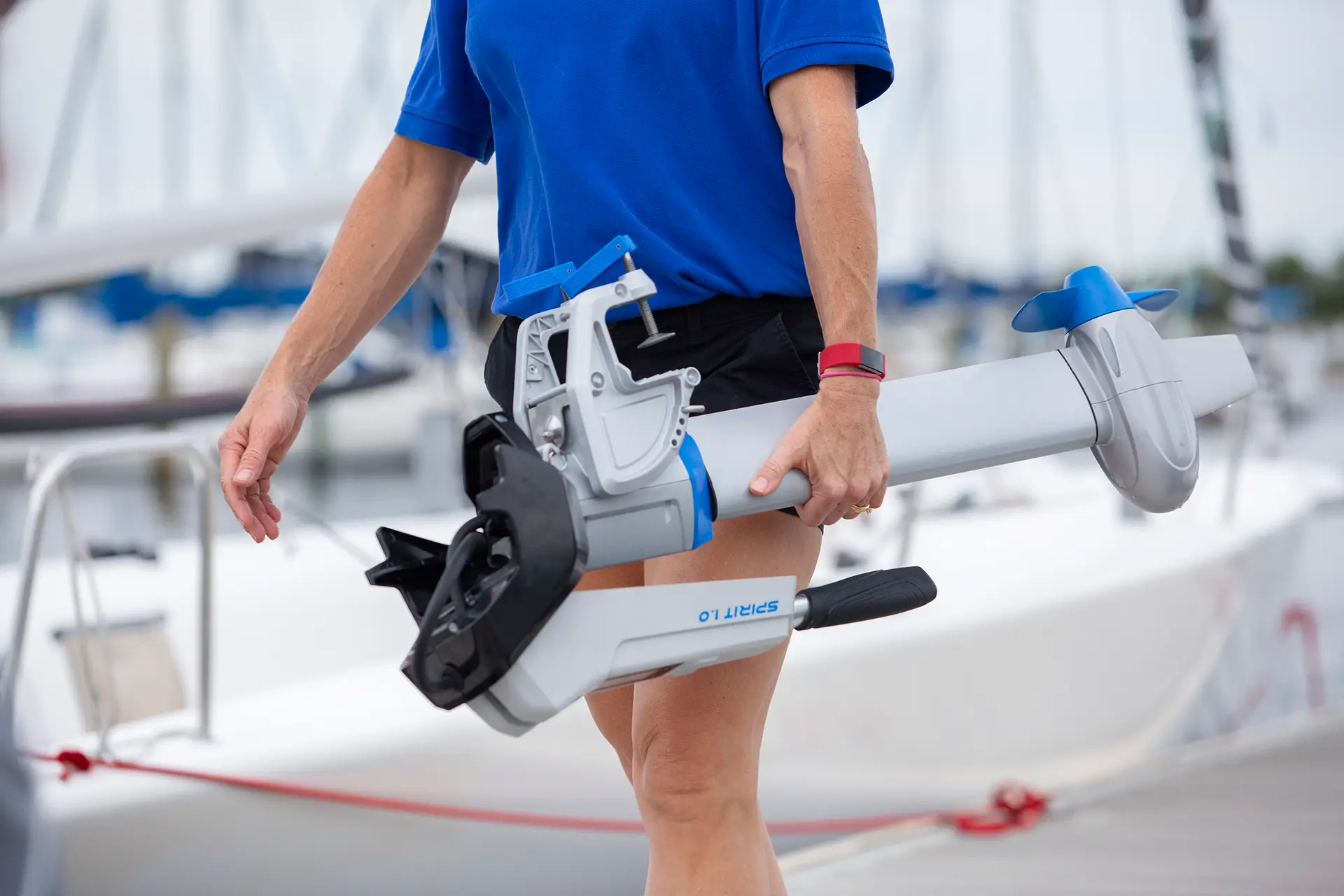

• Folding tiller helps the Spirit 1.0 Plus pack away neatly (carry bag not included)

Controls and Safety Features

• Digital display shows real-time power, remaining runtime, battery level, operating voltage and more
• Electric start – press one button and away you go
• Magnetic kill switch to stop the motor in an emergency
• Stepless throttle for smooth, enjoyable control
• Max power output adjustment – safer for kids to use with reduced full-throttle power
• Ambidextrous operation – easy left-handed or right-handed use

Specifications

• Power: 1kW (3HP equivalent)
• Input voltage: 39V – 60V
• Standard battery: Spirit Battery Plus, 1276Wh Li-ion polymer
• Motor weight: 10.6kg / 23.4lbs (short shaft version)
• Battery weight: 8.7kg / 19.2lbs
• Charging time: Standard charger 8.5 hours, Fast charger 3.5 hours
• External battery: Yes (E-Series battery recommended)

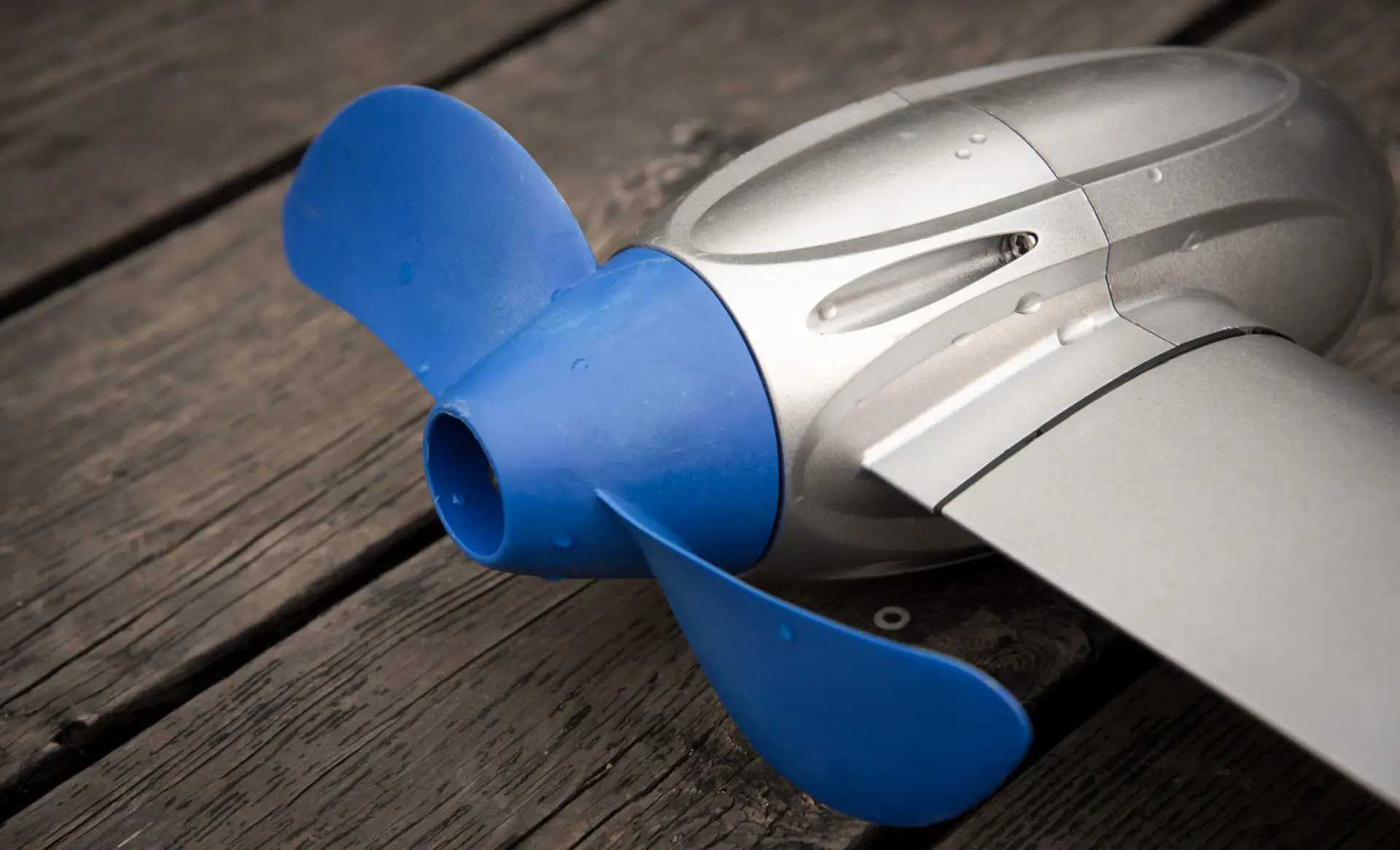

• Propeller: 11″ x 5.8″ 2-blade composite
• Trim / tilt angle: 0°, 7°, 14°, 21° / 70°
• Motor type: Brushless DC motor
• Direct drive: Yes
• Maintenance-free: Yes

Shaft Length Recommendation

Choose your shaft length based on your transom height:
• Transom height 30cm / 11.8in – 40cm / 15.7in: Extra short
• Transom height 40cm / 15.7in – 50cm / 19.7in: Short
• Transom height 50cm / 19.7in: Long

FAQs

Is this engine suitable for smaller inflatable boats?

Yes, the Spirit 1.0 Plus is described as a portable electric outboard that suits smaller sized inflatable boats.

How far can I go on one charge?

One charge can deliver up to 22 miles at 4-5mph, depending on conditions and load.

How long will it run at trolling speeds?

Up to 19 hours at 2.7mph, up to 10 hours at 3.5mph, and up to 5 hours at 4.4mph.

What happens if the battery falls in the water?

The integrated battery is stated to float if it drops into the water.

Does it have safety features?

Yes – it includes a magnetic kill switch for emergency stop.

Are carry bags included?

No – carry bags are not included.

How do I choose the correct shaft length?

Use your transom height to match the recommended shaft length (extra short, short, or long).
